Tools
Mixer
Audiocube’s mixer combines an 8-channel summing desk with a per-device mixer and four global send/return buses - much like an analogue console or DAW.
Opening the Mixer
Action | How |
|---|---|
Keyboard | Press Tab |
Toolbar | Click the Mixer tab (bottom-right corner) |
Mixer Views
Click the tabs in the mixer’s top-left corner to toggle between views.
View | Purpose |
|---|---|
Device Mixer | One fader strip per Sampler—ideal for detailed, track-by-track tweaks. |
Summing Mixer | Eight input channels that group devices for bus-level processing. |

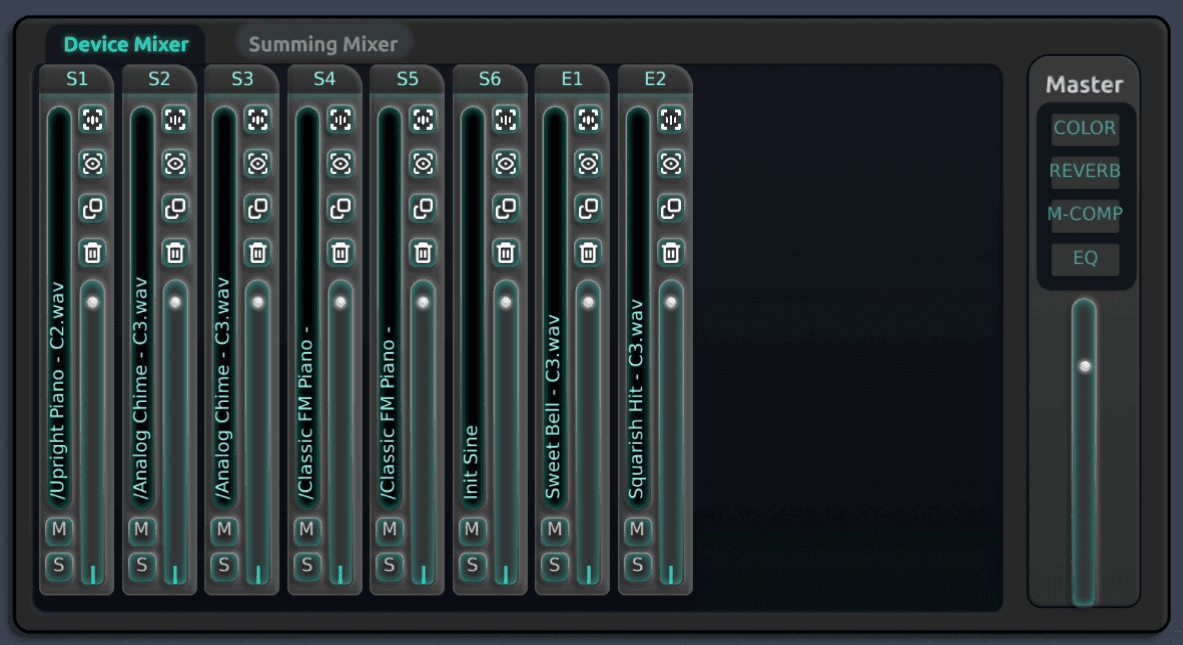

Device Mixer (Per-Sampler/Emitter)
The device mixer gives you individual controls for each sampler and emitter in your project.
Control | Function |
|---|---|
Volume | Output level |
Mute / Solo | Silence or isolate the Sampler |
Edit | Open the Sampler’s full parameter window |
View | Highlight the Sampler in Stage view |
Clone | Duplicate the Sampler |
Delete | Remove the Sampler (cannot be undone yet) |

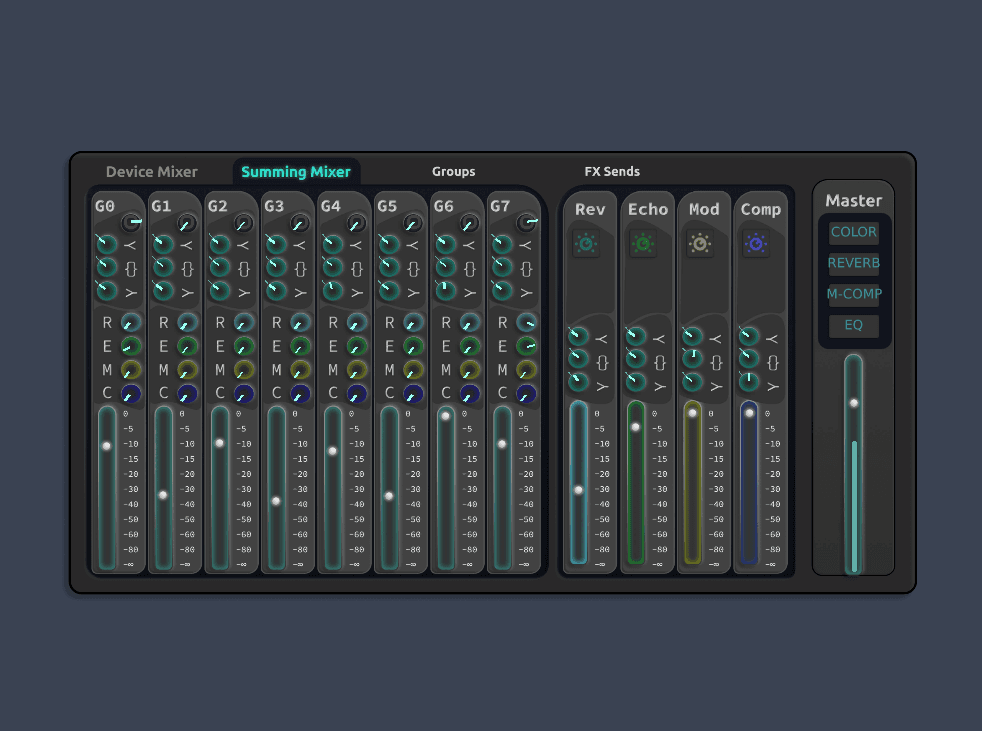

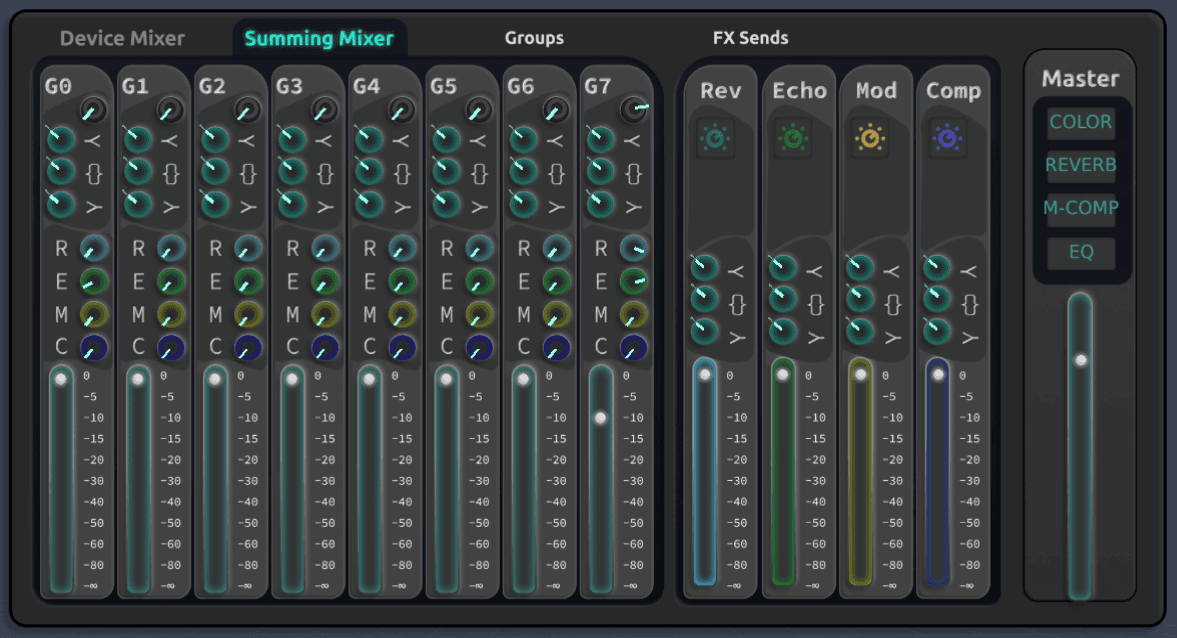

Summing Mixer (8-Channel)
Input-Channel Controls
Section | Parameters |
|---|---|
Gain | Pre-fader trim (drives saturation when pushed) |
EQ | 3-band: • High Shelf 10 kHz ±15 dB • Mid Notch 1 kHz ±15 dB • Low Shelf 100 Hz ±15 dB |
Sends | Pre-fader levels to the four effect buses: • Reverb • Echo • Modulation • Compression |
Volume Slider | Post-fader level to the Master bus |
Send/Return Buses
Bus | Notes |
|---|---|
Reverb | Early-reflections & tails |
Echo | Tempo-sync or free-time delays |
Modulation | Chorus, flanger, phaser variations |
Compression | Glue or parallel compression |
All return strips include EQ and Volume.
Click Open Effect Panel on a bus to edit its processor.
Certain buses can feed other buses for cascaded FX; routings are fixed to avoid feedback loops.
Routing Devices to Input Channels
Right-click a device → open its UI.
Locate Mix Chan.
Choose 0 – 7 (default routes: Samplers → 0, Emitters → 7).
Channel numbers start at 0 for coding reasons; think “0 = 1, 7 = 8.”
Quick Tips
Device Mixer for micro-balance, Summing Mixer for bus colouring.
Use pre-fader sends to create 100 % wet effects (pull channel fader down).
Push Gain into the red for harmonic grit—then tame with the channel EQ.
Save channel-strip presets to recall favourite settings across projects.
Master these views and the mixer becomes the command centre of your Audiocube sessions.
